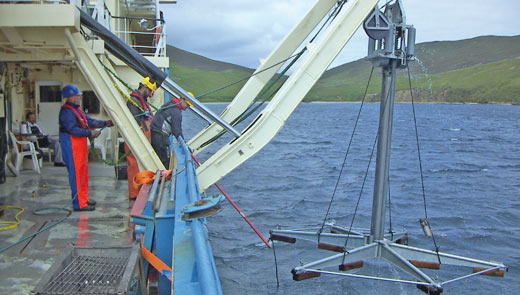

Vibracorer VC

Superb geological sampling device

Description

Proven operation
The original Vibracorers VC have been succesfully operated for more than 30 years and worked at perfect satisfaction. Operated in the Atlantic Ocean, Baltic Sea, North Sea and Mediterranean Sea also at harsh climates and choppy waters it proves the best return on investment due to its sophisticated design. Well known companies such as Federal Maritime and Hydrographic Agency Germany, MMT Sweden, Fugro and Geo Marine Survey Systems (Geo-Corer), Netherlands, are fully pleased customers.

Optimized vibration frequency
The VC is an electrically driven Vibracorer system, vibrating at around 30 Hz, coring bottom samples up to 250 m (optional 1000 m) water depth with
• optimum cores in fine, middle and grain sands and any mixtures thereof
• good results in peats and sands with silty-argillaceous and/or gravel components, moreover smaller stiff stratums are penetrated too

High quality cores
Variable uploads allows you to optimise the penetration force/speed to some 2 meters per minute. This minimizes a resorting of the sediments as well as any bending of its finestructures/layers.

Operational efficiency

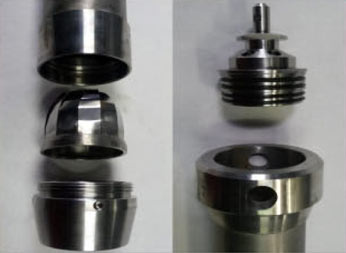

The specific design of cutters, catchers and valves gives you a superb filling of the barrel. The barrel length exceeds the core net length by 150 mm only. Although the runtime of the vibrator unit is unlimited, the typical penetration/retraction time is at around 5 minutes. There is no need to dismantle the core barrel while extracting the core sample. Due to its unique
barrel flip aside design allows an efficient operation with up to
40 cores/sites per day.

Easy handling
The unique design of the VC allows fast and eased assembly and disassembly of the 4 main structural components. This is an USP feature within this class of coring systems.

Reliability
The subtle design and an elaborated manufacturing garanties an outstanding reliability and a minimum of downtime.

Technical Data

VC-3000
core net length
core diameter (inside)
core barrel diameter (outside)
max.working  deepness

height
basement diameter
gross weight (excl. uploads)
gross weight (full uploads)
power supply (threephase AC)
vibrating force
vibrating frequency
corrosion protection
transport

VC-6000
core net length
core diameter (inside)
core barrel diameter (outside)
max.working  deepness

height
basement diameter
gross weight (excl. uploads)
gross weight (full uploads)
power supply (threephase AC)
vibrating force
vibrating frequency
corrosion protection
transport

VC-9000
core net length
core diameter (inside)
core barrel diameter (outside)
max.working  deepnes

height
basement diameter
gross weight (excl. uploads)
gross weight (full uploads)
power supply (threephase AC)
vibrating force
vibrating frequency
corrosion protection
transport


3000 mm
(film tubing/liner) 102/96 mm
108 mm
250 m / 1000 m

4.50 m
2.70 m
0.75 to
1.00 to
380 - 440 V, 4 WA, 50-60 Hz
30 kN / 7.5 kN (deep water)
28 Hz / 14 Hz (deep water)
hot zinced / INOX steel
dismantled


6000 mm
(film tubing/liner) 102/96 mm
108 mm
250 m / 1000 m

7.50 m
4.60 m
0.85 to
1.10 to
380 - 440 V, 4 WA, 50-60 Hz
30 kN / 7.5 kN (deep water)
28 Hz / 14 Hz (deep water)
hot zinced / INOX steel
dismantled


9000 mm
(film tubing/liner) 102/96 mm
108 mm
250 m / 1000 m

10.50 m
  6.50 m
  0.95 to
  1.20 to
380 - 440 V, 4 WA, 50-60 Hz
30 kN / 7.5 kN (deep water)
28 Hz / 14 Hz (deep water)
hot zinced / INOX steel
dismantled

Optional core upgrades
Vibracorer VC-6000 core upgrade set for core length of 6000 mm
Vibracorer VC-9000 core upgrade set for core length of 9000 mm

Optional basement upgrades
Vibracorer VC-6000 basement upgrade for basement diameter of 4.60 m
Vibracorer VC-9000 basement upgrade for basement diameter of 6.50 m

Optional deep water upgrade
Vibracorer upgrade for operations up to 1000 m water depth

Optional special barrel length
Barrel lenght of 4 m, 5 m, 7 m and 8 m available

Optional adjustment for small vessel operation
Reduction of required retraction force of the winch/lift to 1 to only

Optional data aquisition and recording option
Online measuring and storage of power consumption, penetration depth and vertical tilt datas

Optional transport dimension for 10 ft or 20 ft container
Splitted versions of stands and barrel extensions
