pCO2 Monitoring

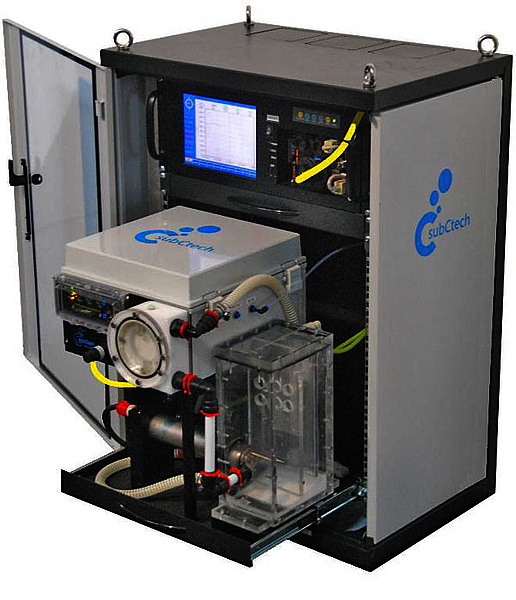

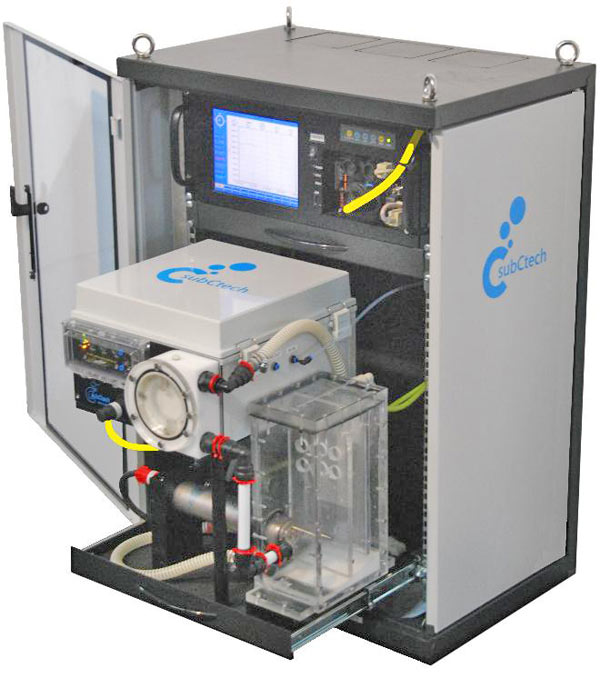

OceanPack flow-through underway pCO2 System
Description
OceanPacks™ are mobile and flexible pCO2 measuring systems.
This family of analyzers was developed for scientific and high-precision climate-change monitoring
under rough conditions.
Application's range is from small boats and buoys up to typical “underway” ship systems (e.g. FerryBox).
A SmartDI® Datalogger acquires and processes data in real-time.
The OceanPack™ consists of the CO2 tolerant mBubbler® Debubbler.
Components
| Parameter | Design | ||
OceanPack AUMSAutonomous Underway Measurement System for vessels and monitoring stations |  | pCO2 and any type and number of internal or external sensors Nutrients (extra 19” rack) Water sampler Meteorology Air-CO2, GPS (Top-Box) | Flow-through System (“FerryBox”) Optionally racks for nutrient analyzers or water sampler Top-Box for meteorology and independent Air-CO2 analyzer Automatic cleaning Ship system integration Debubbler and sensor integration |
OceanPack RACKVersatile measurement system for vessels and monitoring stations |  | pCO2 and few internal or external sensors Meteorology Air-CO2, GPS (Top-Box) | “Underway” System 19” Rack / Flow-through Optionally: Top-Box for meteorology and independent Air-CO2 analyzer Ship system integration Debubbler and sensor integration |
OceanPack AQUAAquaCulture and MariCulture monitoringand control system |  | Any parameter e.g. pCO2, Nutrients, Oxygen, pH, Light, Flow, Turbidity, H2S etc. | Industrial AquaCulture System High precision analysis for sensible products such as RAS, IMTS or contamination free fish breeding Flow-through or inline sensors |
TopBox MK3 SAEAir-CO2 Analyzerwith LI-7200x analyzer for Sea-Air Exchange analysis |  | Air-CO2 (MK3: LI-7200x) GPS external sensors on request e.g. Meteorology | High-end state-of-the-art Analyzer Stainless steel IP68 enclosure Complete remote data acquisition system Protected against spray & waves “Arctic” version -40°C to +50°C |
OceanPack Standard pCO2 flow-through analyzer |  | pCO2 and few external sensors Air-CO2, GPS (Top-Box) Optionally Water system with Debubbler | Standard Analyzer Small footprint and extreme tough design Top-Box for meteorology and independent Air-CO2 analyzer Ship system integration |
OceanPack LABLaboratory mobile analyzer |  | pCO2 Few external sensors can be customized connected | All-in-one Lab-Analyzer 19” Unit with touch-screen High precision, ultra-compact Top-Box for meteorology and independent air-CO2 analyzer |
