Ruggedized Operation Control Center Field PC
Field PC
Description
emma technologies produces ruggedized PC‘s for hydrographic
and oceanographic, such as Side Scan Sonar, USV,
AUV, ROV, Underwater Camera, etc. applications. eROCC

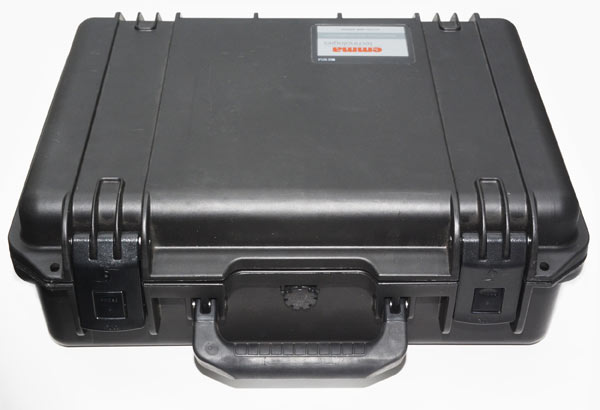

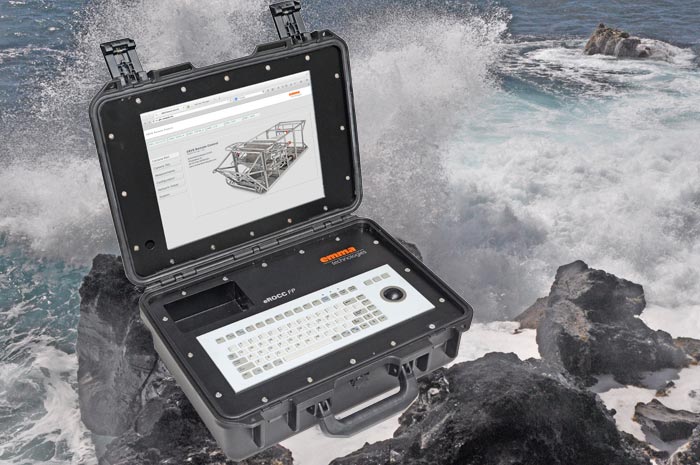

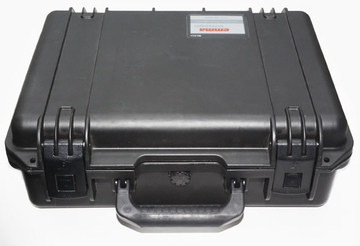

Field PC is a ruggedized PC in shock resistant and waterproof
case. It is easily portable and can be mounted on
tripod for customer-friendly operations in the field.
Technical Data
- Display: 1024 x 3(RGB) x 768, 15“, LED Backlight, 1200 lm, Response time < 8 ms, -30° C – 85° C, max
- 90% Humidity

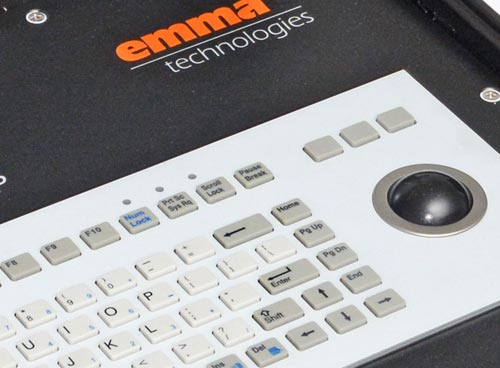

- Keyboard IP 65 static, IP 56 dynamic
- CPU Intel Atom 4C 1.91 GHz or better, 64 bit, min 2 GByte RAM

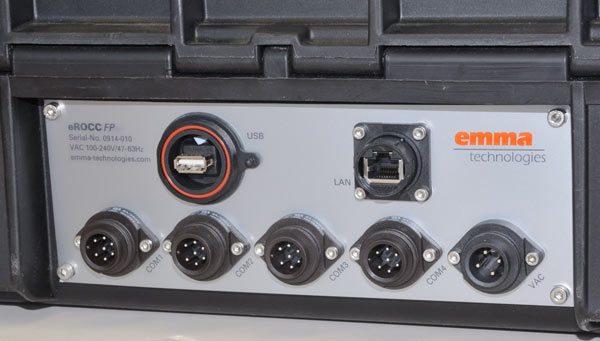

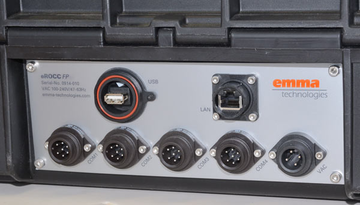

- min 4x RS232, 1 x RS232/422/485 selectable
- min 2x USB2, 1 x USB3
- 2 x SATA 6.0 Gb/s internal
- Power supply: 12 VDC or/and 110 – 240 VAC
- Case open IP 55, closed IP 65
- Optional: integrated battery for 18 hours endurance
- Optional: Bluetooth, Wlan
