eWinch:Container
Mobile container winch with electrical winch ELW-C-MCM for towed systems
Description

- Containerised solution for platform of opportunities
- Customised design for different sizes and cable lengths
- High-end electrical motor, gear and control system
- Wireless cable measurement system
- Easy-to-set-up and operate
Specification
Electrical | Compulsory winch 3P+N+PE |
Winch construction | All welded steel with stainless steel hardware |
Power supply Tow cable | 400 V / 50 Hz - option 60 Hz armored coaxial cable Ø 10.3 mm to Ø 17.27 mm |
Cable connection on winch | According to IEC standard |
Ground pin location | 180°/ 6h |
|
|
Helical-bevel gear unit | High power density Wear-free Long service life 96 % gear unit efficiency or better Multi-stage gear unit for low output speeds |
Frequency Inverter | MOVITRAC |

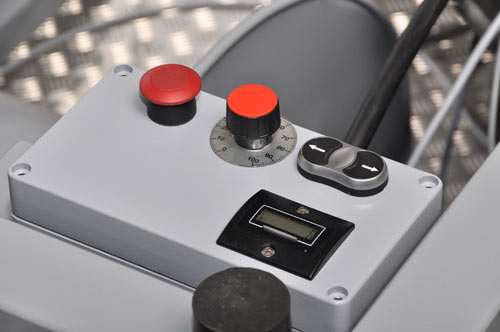

Remote Control | In control container rack for deck use Option: in wheelhouse for remote use |

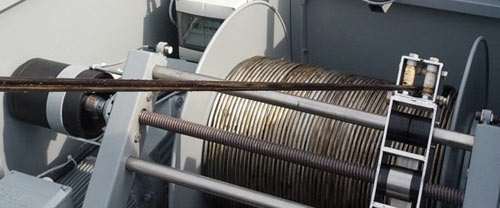

Cable guide system | Spooler over a cross-wind threaded spindel |
Cable counter system | contact free wireless counter |
Lifting points for transport | points for crane lifting |
Fixation | 4 fixations for mounting on deck |
