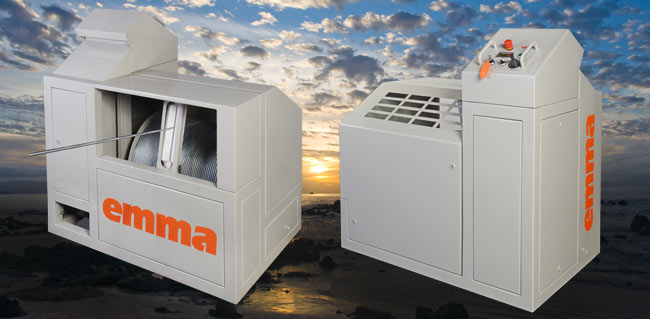

eWinch.CLW

for CTDs, Multi Parameter Probes and Water Samplers

Description

  • Different types and sizes for operating depths
  • from 100 m up to 3000 m available
  • Steel wire or data cable
  • Variable Speed control
  • 24 VDC and 400 VAC / 50 Hz (60 Hz)
  • Footprint: from 400 mm x 350 mm to 1200 mm x 800 mm
  • Option: Blue tooth cable block for cable length counting
  • Option: A-frame or crane jib

Specifications

Electrical 3P+N+PE
Winch construction All welded steel with stainless steel hardware
Power supply 400 V / 50 Hz
Cable connection on winch According to IEC standard
Ground pin location 180°/ 6h


Motor


Asynchronous AC motor with integrated electromagnetic disk brake
Overload capacity of 150-180% of the rated torque during startup
Short time overload of up to 400% of the rated torque
Noise level acc. to IEC/EN 60034-9
Power: 9.2 kW
Torque: 36 Nm

Helical-bevel gear unit
High power density
Wear-free
Long service life
96 % gear unit efficiency or better
Multi-stage gear unit for low output speeds
Frequency Inverter

MOVITRAC

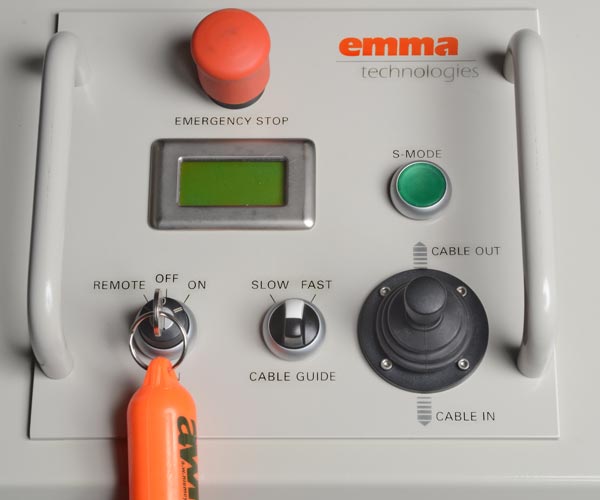

Remote Control Positioned in in control container rack or for deck use
In parallel from the wheelhouse through connection box and deck cable
same length as SSS deck cable

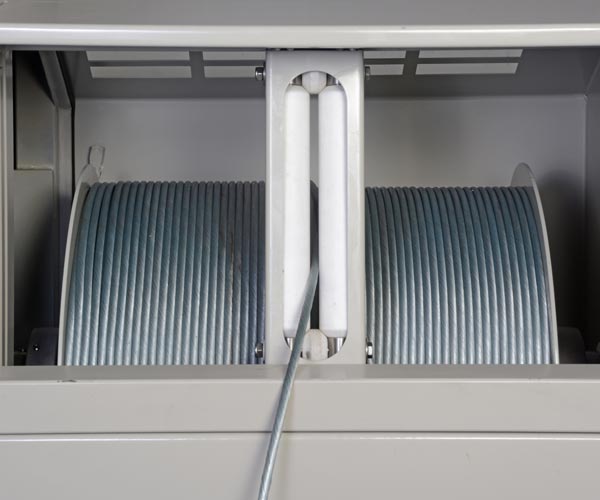

Cable guide system Step motor controlled
Cable capacity depending on cable diameter and customer requirements
Lifting points for transport points for crane lifting
 Fixation 4 fixations for mounting on deck
